| WAVEPOWERTM Series |

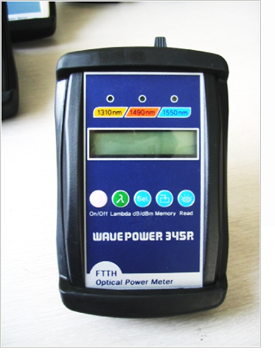

| Optical Power Meter(345R) |
 |
| Wavepower series |
| WAVEPOWER series is easy-to-use
testing instruments for optical fiber network, The optical
power measurement results could be displayed in logarithmic
(dBm), and relative power (dB) modes. The user can choose
one of these modes for absolute power or relative loss
measurements. |
| |
| Applications |
ATM-PON Monitor
Ethernet-PON Monitor
Hybrid-PON Monitor
Fiber attenuation testing
Telecommunications
FTTH ready |
| |
|
Features
Test wavelength:1310,1550,1490nm / Dust and shock proof
design
Auto shut off function / Fast response, no warm up / Data
storage function
The WAVEPOWER series can support accurate testing of single
mode optical fiber systems, with features of large LCD
display, damp and shock proof design and dual-way powering
system. The internal microprocessor and linear amplifier
technology ensure the long-time accuracy.
The WAVEPOWER 345R can store up to 400 measured data points.
This stored data can be downloaded via the software to
produce formatted certification reports. Careful use of
this meter will provide years of reliable service.
Ideal for both laboratory and field applications by using
concise function keys to implement quick, high accuracy
testing.
|
Specifications
|
|
Parameter
|
Typical
|
Note
|
Calibration
lambda (nm)
|
WAVEPOWER
35 |
WAVEPOWER
345 |
WAVEPOWER
345R |
|
1310/
1550
|
1310/1490/
1550 |
1310/1490/
1550 |
Detector
|
Type
|
InGaAs
|
|
| Calibration
accuracy |
0.2dBm |
@-10dBm |
| Power
range |
+10~-60
dBm |
|
Display
unit
|
nm,
dB, dBm,
|
|
| Optical
adaptor type |
SC
|
Interchangeable |
Data
storage
|
400ea(345R
only)
|
|
| Data
transmission |
RS-232(345R
only)
|
|
Auto
off
|
10
after last key has been depressed
|
|
| |
|
Parameter
|
Unit
|
Typical
|
Note |
Battery
|
power
|
V
|
One
9V alkaline cell
|
optional
9V AC adapter |
| life |
hrs
|
100(Typ.) |
Display
|
|
16
by 2 LCD MODULE |
|
Operating
temperature
|
|
-5~65
|
|
Storage
temperature
|
|
-20~70
|
|
Relative
Humidity
|
|
95%
RH from 0~40
|
|
|
| |
| Ordering information |
|
Part
number
|
Description |
WAVEPOWER
35 XX
|
Measurement
range of 10 to -60 dBm, DC adaptor, One connector
adaptor
|
WAVEPOWER
345 XX
|
Measurement
range of 10 to -60 dBm. DC adaptor, One connector
adaptor
|
WAVEPOWER
345R XX
|
Measurement
range of 10 to -60 dBm. DC adaptor, One connector
adaptor, Storage function. RS-232
|
Connector
adaptor code( XX)
|
SC=SC,
FC=FC, ST=ST |
|
|
|
| |
|
|
