Light Source(OLS) |
| |
|
|
|
| |
|
 |

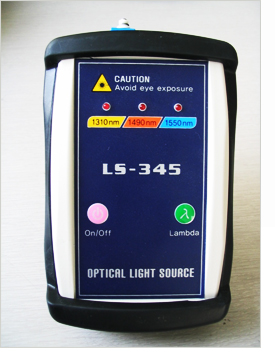

| LS-345 series |
| Optical Light Source |
 |
| Light source |
| LS-345 series are easy-to-use
testing instruments for optical fiber test and laser-based
light sources designed to test single mode fiber optic
links. They provide power meters with a stable output |
| |
| Applications |
Optical fiber component manufacture
& test
CWDM component and system test
Other occasion where need stable light source |
| |
| Features |
wavelength:1310,1550,1490nm
/ Dust and shock proof design
Auto shut off function / CWDM laser is available
High stable optical power / Low warm up & stable
High stable output power / Very easy-to-use |
|
The LS-345 is used with a power
meter for measuring optical loss on single mode fiber
cable. High laser stability is guaranteed, power output
is unaffected by varying back reflection.
The LS-345 operates on disposable batteries or AC adapter.
A Low battery indication warns the user that battery replacement
is necessary. The optical output is via a top panel FC,
SC, or ST connector. The output may be equipped with other
style connectors upon request.
The center wavelength of the light source is measured
at the point of peak intensity. Light sources emit a range
of wavelengths, not just one. The difference between the
lowest and the highest frequency of light is called the
spectral width. For practical purposes, spectral width
is measured at Full Width-Half Maximum (FWHM); the width
(Full Width) is measured at the point exactly halfway
between zero power and peak power (Half Maximum). Careful
use of this source will provide years of reliable service.
|
Specifications
|
|
Parameter
|
Unit |
Typical
|
Note |
Central
wavelength
|
nm |
LS-35
|
LS-345 |
|
1310/1550 |
1310/1490/1550 |
Output
power
|
dBm
|
0
|
0
|
Adjustable
1dB steps
|
Short
term stability
|
dBm
|
0.1
|
5
Min max
|
Long
term stability
|
dBm
|
0.03
|
|
Fiber
pigtail
|
|
SMF-28
|
|
Output
connector
|
|
SC
|
Interchangeable
|
Output
Ferrule
|
|
UPC
or APC
|
Selectable
|
Auto
off
|
min
|
None
|
Battery
|
power |
V
|
One
9V alkaline cell
|
optional
9V AC adapter
|
| life |
hrs
|
50 |
Dimension
|
|
|
|
Display
|
|
LED
& LCD
|
|
Accessories
|
|
9V AC adapter, carry back, operation
Manual
|
Operating
temperature
|
|
-5~65
|
|
Storage
temperature
|
|
-20~70
|
|
Relative
Humidity
|
|
95%
RH from 0~40
|
|
|
| |
| Ordering information |
|
Part
number
|
Description |
LS
35 XX
|
Out
put laser :1310/1550, DC adaptor, One connector
adaptor
|
LS
345 XX
|
Out
put laser :1310/1490/1550. DC adaptor, One connector
adaptor
|
Connector
adaptor code( XX)
|
SC=SC,
FC=FC, ST=ST
|
|
|
|
| |
|
|
